| Type | Small Brushless Outrunner | ||
| Kv (rpm/v) | 1780kv | ||
| Max Current (A) | 11a / 60 secs | ||
| Resistance (mh) | |||
| Max Voltage (V) | |||
| Power(W) | |||
| Shaft A (mm) | 3mm | ||
| Length B (mm) | |||
| Diameter C (mm) | |||
| Can Length D (mm) | |||
| Total Length E (mm) | |||

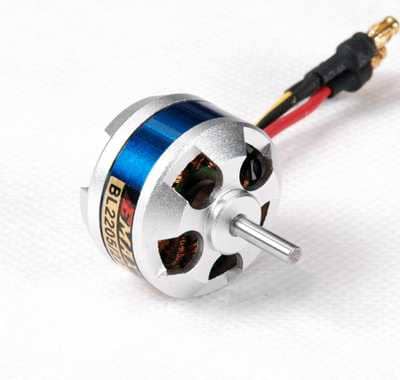

DESCRIPTION Small electric brushless outrunner motor. APPLICATIONS HINTS / NOTES No. Of cells 4 – 82x Li-PolyRPM/V 1780 RMP/VMax. efficiency 82%Max. efficiency current 8 10.5 A (>75%)No load current / 10 V 0,5 ACurrent capacity 11 A/60 sDimensions 28×15 mmShaft diameter 3 mmWeight 29 gRecomended model weight 150 -250 gRecomended prop without gearbox APC 8X3.8APC 9X4.5Examples of use – EMAX 2205 Model Cell Count RPM/V Prop(APC) RPM MAX Current(<60m) Thrust 7X4 9100 7A 320g/0.7lb BL2205 Li-Po11.1V 1780 8X3.8 6700 8.2A 294g/0.65lb. 9X4.5 6400 10.5A 369g/0.82lb.
